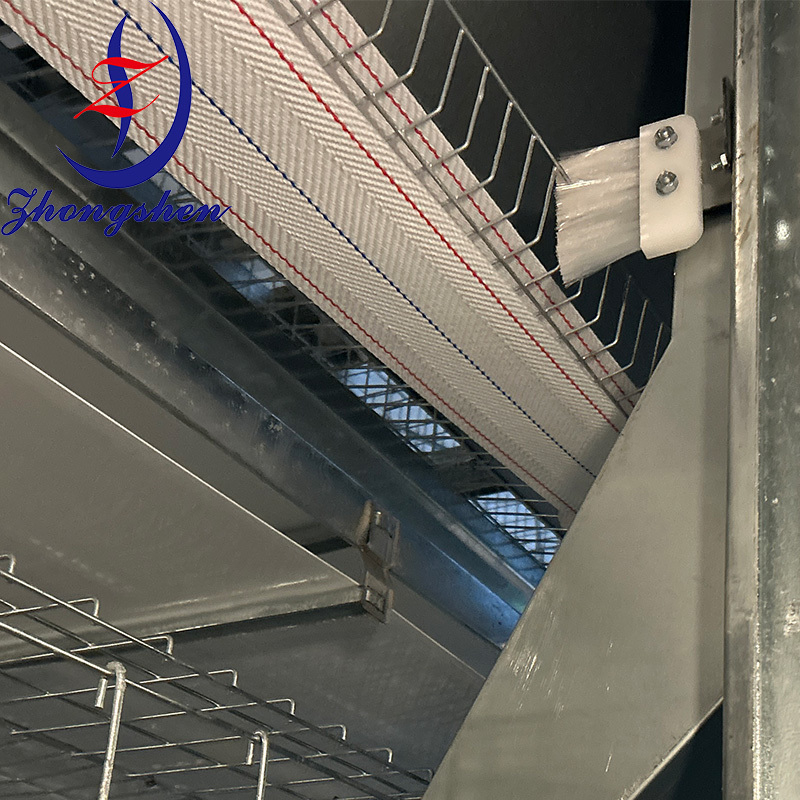

Zhongshen High-Strength Egg Collection Belt for Layer Cage Systems

Zhongshen High-Strength Egg Collection Belt for Layer Cage Systems

Product Quick Detail

• Product Name: Egg Conveyor Belt
• Brand: ZhongShen
• Model: PP5

• Material: Woven Polypropylene (PP) with anti-aging additives; reinforced polyester yarns.

• Width: 92mm,95mm,98mm,100 mm standard; custom sizes from ~50 mm up to 100 mm available.

• Length: Sold in continuous rolls (e.g. 300,500 m) and cut to fit; seams can be sewn or ultrasonically welded to any length.

• Tensile Strength: Extremely high – maintains form under conveyor loads without stretching.

• Weave Pattern: Herringbone or similar; holds eggs securely on inclines and curves.

• Color Scheme: White belt with a blue center stripe (additional stripes available).

Product Description

The Egg Collecting Belt (also known as an Egg Transport Belt) is a premium PP conveyor built for fully automated layer hen operations. Its flexible-yet-strong woven polypropylene construction easily wraps around rollers and adapts to the cage system’s geometry. Designed to work in tandem with automatic egg collection machines, it gently channels eggs along support guides and over inclines to central elevators or packers. Anti-UV and anti-static treatments keep the belt clean and durable by preventing material aging and dust accumulation. By automating egg pickup, this conveyor belt significantly boosts throughput and reduces breakage and labor compared to manual raking

Production Features

1. Rugged Construction: Woven PP braid resists wear and remains tough under daily use.

2. Minimal Elongation: Engineered for low shrinkage so egg spacing stays constant.

3. Gentle Conveying: Designed to move eggs smoothly without rolling or impact, preventing cracks.

4. Vibration Absorbent: Herringbone weave and flexible belt absorb shocks, further protecting eggs.

5. Custom Fit: Can be spliced on-site to any required length, adapting to unique farm layouts.

6. Sanitary: Polypropylene naturally repels bacteria/fungi; anti-static yarn keeps belt and eggs dust-free.

7. Weather-Stable: Performs reliably in high humidity or temperature changes; no sagging in damp conditions.

8. Versatile: Offered with perforations or solid weave, and in different colors to match various equipment.

9. Labor Efficient: Fully automated operation means staff only need to monitor, greatly reducing manual collection.

Production Applications

• Integration with A- and H-type cage systems to transport eggs to collection carts.

• Multi-level poultry houses (indoor or greenhouse) in the Americas and Asia.

• New farm builds or retrofits where continuous egg collection is needed.

• Facilities seeking HACCP compliance – belt resists microbial growth and is easy to sanitize.

• Part of a turnkey egg handling line (egg collection, grading, packing).
